Model C-91 Specifications

The C-91 is the largest UV cabinet available in the market today at a reasonable cost. (The next bigger one costs about 10 times as much.) It can be used for erasing EPROM IC chips, printed circuit boards, 8" wafers, and curing of materials.


UV EPROM Eraser Cabinet

$3,195
(Lead time: 3 weeks ARO)

C-91-115V
115 volt


For USA and Canadian users
C-91-230V
230 volt


For Asia and European users


Electrical

UV light
wave length
254 nm
Typical
UV Intensity
18 mW per cm2
C-91-115V
AC voltage
115 volts
For USA and Canadian users
C-91-230V
AC voltage
230 volts
For Asia and European users

Erasing Time Required
in Minutes
Erasing energy
required by EPROM
6W-sec
cm2
10W-sec
cm2
15W-sec
cm2
5.6 9.3 14

Erasing Time Calculation Formula

Erase Time (Minutes)
= Erasing Energy required by EPROM (W-sec/cm2) x 1,000
UV Intensity (mW/cm2) x 60

= Erasing eEnergy required by EPROM (W-sec/cm2) x 1,000
18 x 60

= Erasing Energy required by EPROM (W-sec/cm2) x 0.93

For example,
if a certain EPROM type requires an Erasing Energy of:
10W-sec
cm2

then, Erasing Time = 10 x 0.93=9.3 minutes



Physical

Overall Housing Dimensions
W x L x H
14" deep x 13" wide x 7" high in.
(36 x 33 x 18 cm)
Inside Tray Dimensions
Width x Length
9 x 8.8 in.
(22.9 x 22.4 cm)

Erases 8" wafers
Capacity
96 EPROM IC chips,
Circuit board up to 9 x 8.8"
(30.5 x 21.3 x 3.5 cm),
or one 8" wafer.
Net Weight 21 lbs.
(11.8kg)
Shipping Weight 31 lbs.
Technical data subject to change.


More pictures


UV EPROM Eraser

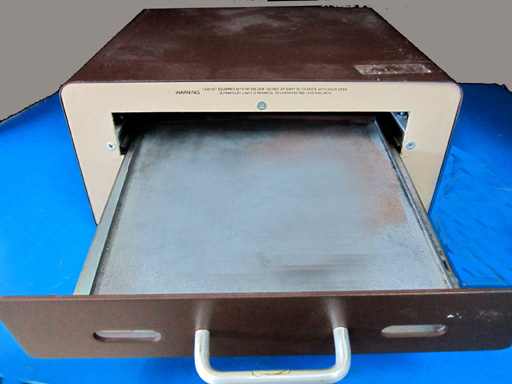

View of UV eraser inside tray.

UV EPROM Eraser Cabinet timer

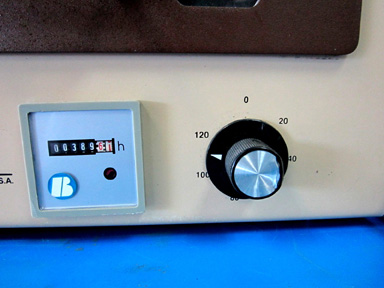

Cmulative hour meter and turn-knob minute timer

Large UV Eraser Eraser
UV eraser, back view
