Spectronics Spectroline UV Eraser Cabinets
for Wafers, Circuit Boards, EPROMs
or Other High-Volume UV Erasing Applications

These large Spectronics UV erasers can be used for erasing EPROM-based chips on PC boards and wafers.

All use superior quality UV grid lamps which produce:
  • Accurate UV wave length spectrum.
  • Optimum and even distribution of UV light.
  • Up to four times the throughput of other UV erasers.

    All models use accurate UV grid lamps:
    Spectronics Spectroline UV eraser grid lamp

    These large grid lamps generate 254 nm wave length UV lights. Typical UV Intensity= 18,500 µW per cm2

    • Spectroline UV Eraser Cabinet Models and Prices
    220V / 60Hz with USA Plug
    UV Eraser Model
    (Click on picture
    for details)     		Eraser Inside Tray Dimensions
    Width x Length     		Price
    PC-4420A
    uv wafer eprom eraser PC-4420A     		32-3/8 x 12 x 1-3/8"
    (82.2 x 30.5 x 3.5 cm)

    Erases 12" wafers     		Discontinued.
    PC-8820C-LT
    (220v/60Hz)
    uv eprom eraser cabinet PC-8820C
    (Click for details)
    		32.4 x 26.8 x 1.4"
    (82.3 x 67.9 x 3.6 cm)

    Erases 3 x 12" wafers

    More info from Spectronics     		$33,950
    No longer available
    PC-10020C-LT
    (220v/60Hz)
    uv eprom eraser cabinet PC-10020C-LT
    (Click for details)
    		42 x 28 x 1.8"
    (106.7 x 71.1 x 4.4 cm)

    Erases 6 x 12" wafers

    More info from Spectronics     		$39,950
    No longer available
    G750NO2
    Spectronics Spectroline UV eraser grid lamp
    (Click for details)

    8" x 8"
    		Replacement grid lamp for Spectronics:
    PC-11OOA
    (1 required),
    PC-22OOA
    (2 required),
    PC-33OOA
    (3 required).

    $1,106
    Please check with us before ordering. Limited quantity available.

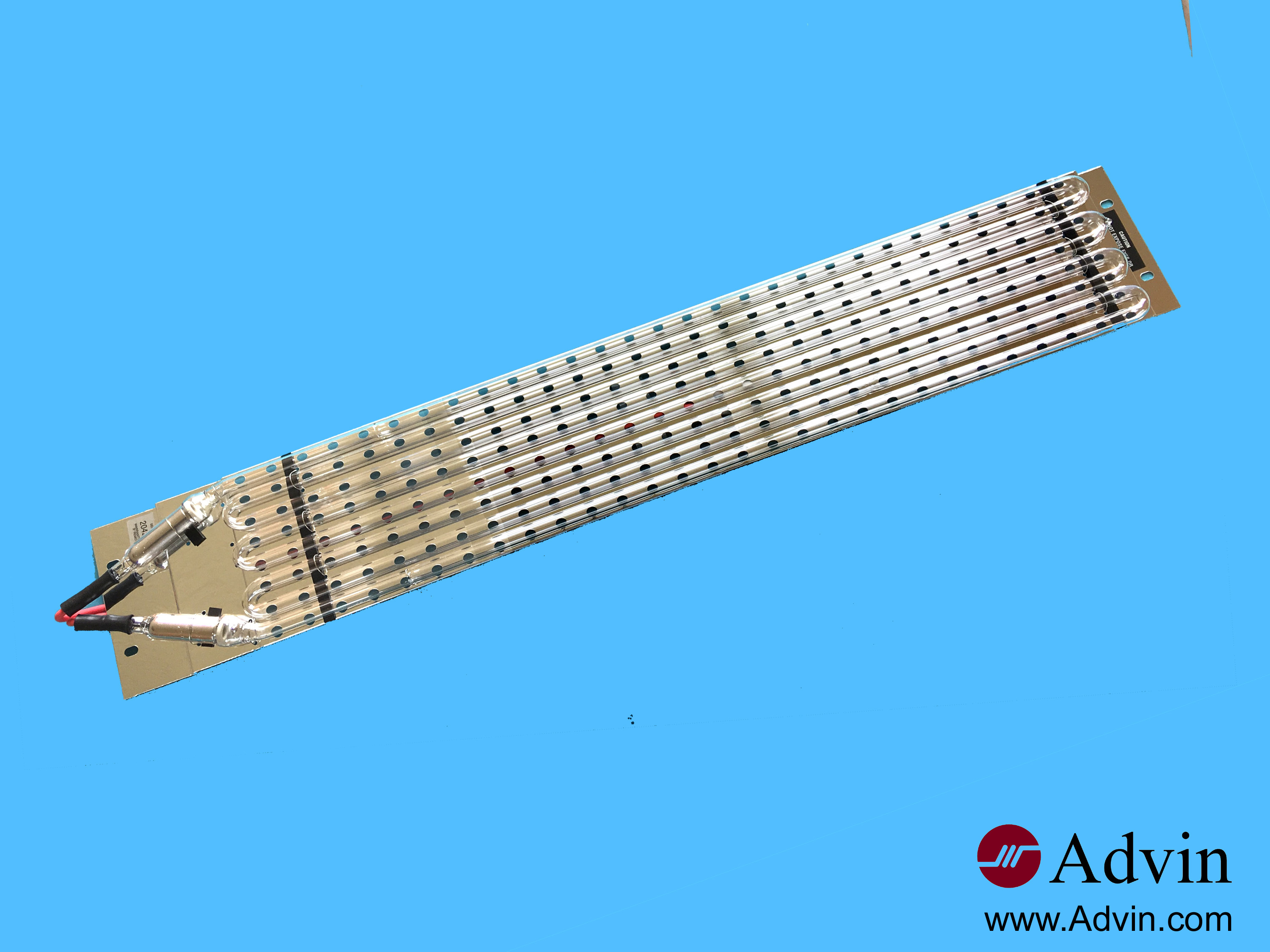

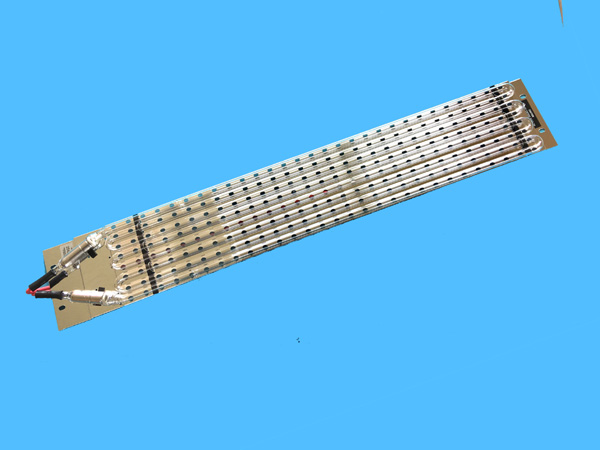

    G985NO-B
    Spectronics Spectroline UV eraser grid lamp G985NO
    (Click for details)

    4" x 22"
    		Replacement grid lamp for:
    Spectronics
    PC-8820B,
    PC-8820C-LT
    (8 required per machine)
    		No longer available
    G1005NO
    Spectronics Spectroline UV eraser grid lamp G985NO
    (Click for details)

    4.125" x 25"
    		Replacement grid lamp for:
    Spectronics
    PC-10020,
    PC-10020-LT
    (8 required per machine)
    		$1,285
    buy Spectronics lamp
    Lead time:
    2 weeks


    Erasing Time Required in Minutes
    UV Eraser Model Erasing energy
    required by EPROM
    6W-sec
    cm2    		 10W-sec
    cm2    		 15W-sec
    cm2
    ALL PC Models 5.4 9.0 13.5

    Erasing Time Calculation Formula

    Erase Time (Minutes) = Erasing eEnergy required by EPROM (W-sec/cm2) x 1,000,000
    UV Intensity (µW/cm2) x 60

    Note: All units are UL listed. Technical data subject to change.
